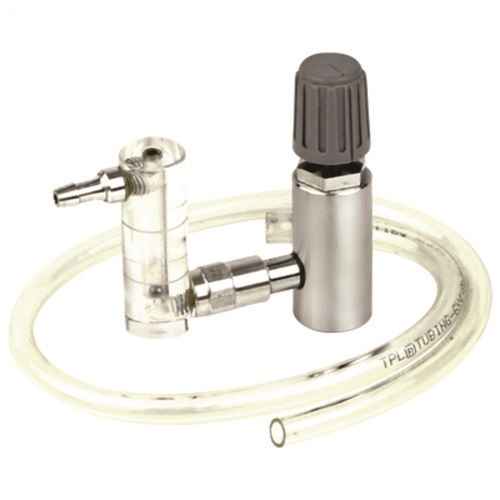

Mini Flow Valve

AFIXCEL Mini Flow Valves series: VMF15 with brass control valve and flow indicator also known as “Mini Flow Regulator” are designed to provide a constant fixed flow rate of non-corrosive gases and mixtures from disposable cylinders which are applicable for aerosol type aluminium canisters for calibration gases. These valves are used with 20L canisters.

These valves allow users to control the flow of gas regulation up to 1.5 liters per minute by adjusting the finger knob on top of the valve.

FEATURES:

• Available in Nickel Plated Brass
• Compact design and size
• Low cost and easy to operate
• Protective plate finishing
• Innovative design features

SPECIFICATION:

• Inlet pressure rating: upto 70 bar (1000 psig)
• Inlet Connection: 7/16” X 28 UNF
• Outlet Connection: 4mm Barb
• Flow Rate: upto 1 lpm
