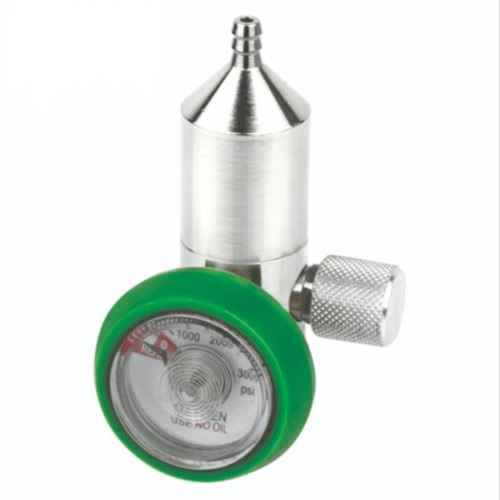

Fixed Flow Regulator

AFIXCEL Compact fixed flow pressure reducing regulators Series: CFFR15 are capable of regulating a wide range of media compatible with materials of construction. These compact regulators are designed to provide a constant fixed flow rate of non-corrosive gases and mixtures from disposable cylinders fitted with a 5/8-18 UNF (C-10) connection.

These compact fixed flow pressure reducing regulators are preset prior to shipment. Standard flow rates include 0.3, 0.5, 1.0, 1.5, 2.0, and 2.5lpm. Other fixed flow rates are also available on request.

FEATURES:

• Compact design and size
• Factory preset flow setting
• Machined bar stock body
• Built in on/off valve
• 50 Micron inlet filter
• Pressure gauge monitors cylinder pressure

SPECIFICATION:

• Pressure rating: upto 200 Bar
• Temperature rating: -20° C to 70° C
• Inlet Connection: 5/8 -18 UNF (C10)
• Outlet Connection: 3/16 Hose barb
• Flow rate: up to 7.0 LPM
