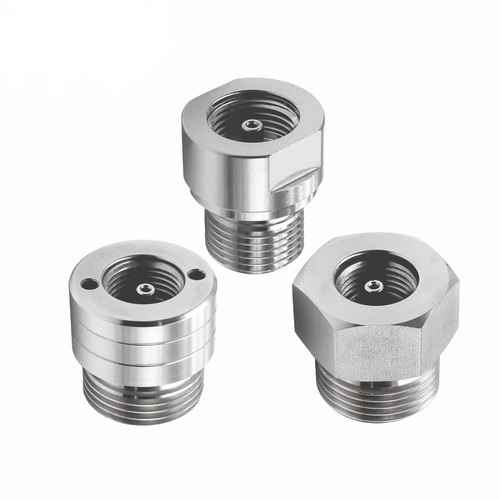

C10 Calibration Valve

AFIXCEL C-10 Calibration Gas Valves Series: VC10 has been carefully manufactured to meet consistent and reliable quality products. C10 calibration gas valves to the specialty gas markets are designed to use corrosive and non-corrosive high purity and specialty calibration gas cylinders for reactive and non-reactive gas mixtures. Standard C10 valves are available in stainless steel construction with a variety of valve bodies including spanner wrench and wrench flats, as well as custom body design, material, and O-ring specifications for almost any application.

FEATURES:

• Compact design and size
• Various valve body options
• Inner check valve for rapid filling
• Variety of inlet connection
• Bubble tight leak rate
• Custom machining available on request
• Every valve is factory tested

SPECIFICATION:

• Inlet pressure rating     :     Max. upto 180 bar (2600 psig)
• Inlet Connection     :     1”-14 UNF / 3/4"-16 UNF
• Outlet Connection     :     5/8”-18 UNF (C10)
• Alternative connections available on request
