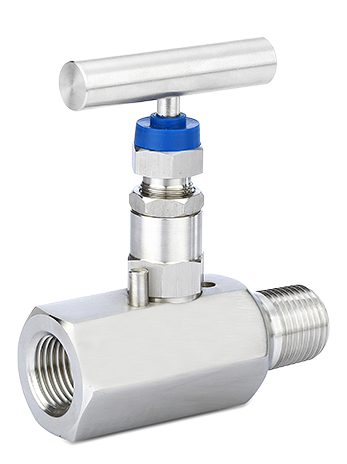

Avn-04 Series Needle Valve

AFIXCEL Needle Valve Series: AVN04 is compact Bar Stock Hex Body design Needle Valves are designed and manufactured for use on applications that required complete isolation or throttling of the media. This Valve is most suitable for a variety of applications including Instrumentation, Hydraulic, and Pneumatic systems.

FEATURES:

• Compact design
• Anti blow-out Stem
• Low operating torques
• PTFE packing standard
• Bar stock hex Body straight patterns
• End connection size range from 1/4 to 3/4 inch.
• End connections include Afi-Lok Tube Fittings, Male / Female NPT, BSPT, BSPP pipe connections

SPECIFICATIONS:

• Pressure ratings: Up to 6000 PSIG (413 Bar)
• Standard materials 316 Stainless Steel
• Alternative materials available on request
