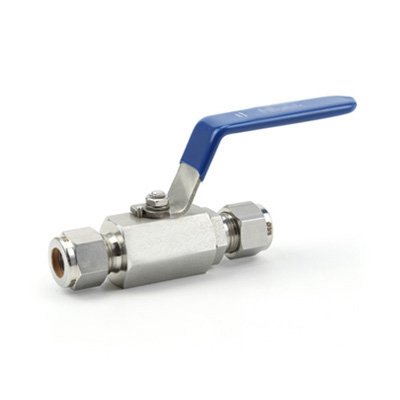

Avb-04 Series Ball Valves
AFIXCEL AVB04 Series is Hex Bar Stock Body Ball Valve is a soft seated moderate-pressure ball valve rated up to 1500 psi generally used in general services. These valves are manufactured in hex bar stock materials. They can be used for bi-directional flow in fully open or fully closed positions.
FEATURES
- Compact and economical design
- Bi-directional flow
- Blowout proof stem
- Low operating torque
- Available in Stainless Steel body Constructions as standard
- Available Fractional Size from 1/4 to 1/2 inch and 6mm to 12mm
- Variety of end connections includes Afi-Lok Tube Fittings, Male / Female NPT, BSPT, BSPP pipe connections
SPECIFICATIONS:
- Maximum Allowed working pressure: up to 1500 PSIG (103 bar)
- Maximum Allowed Temperature:: -28°C to 232°C
